What is a Industrial Door High-Speed Door ? Introduction to the Working Principle of High-Speed Door

Industrial Door High-Speed Door Also known as high-speed soft curtain door, fast soft curtain door or industrial soft curtain fast door, it is an automatic door body device which is driven by motor to make the soft PVC curtain cloth rise and fall quickly and run under the guidance of track.，Simple structure and advanced technology.，it is mainly composed of safety devices/installations, driving gear, Door curtain material, Induction system and Track structure，it is widely used in chemical industry, light industry, food, business and food，is a kind of Industrial Door High-Speed Door manufactured by Anbixin。

1、Brief introduction of Industrial Door High-Speed Door

Industrial Door High-Speed Door As an efficient and energy-saving industrial door equipment，the product looks beautiful.，reliable quality。

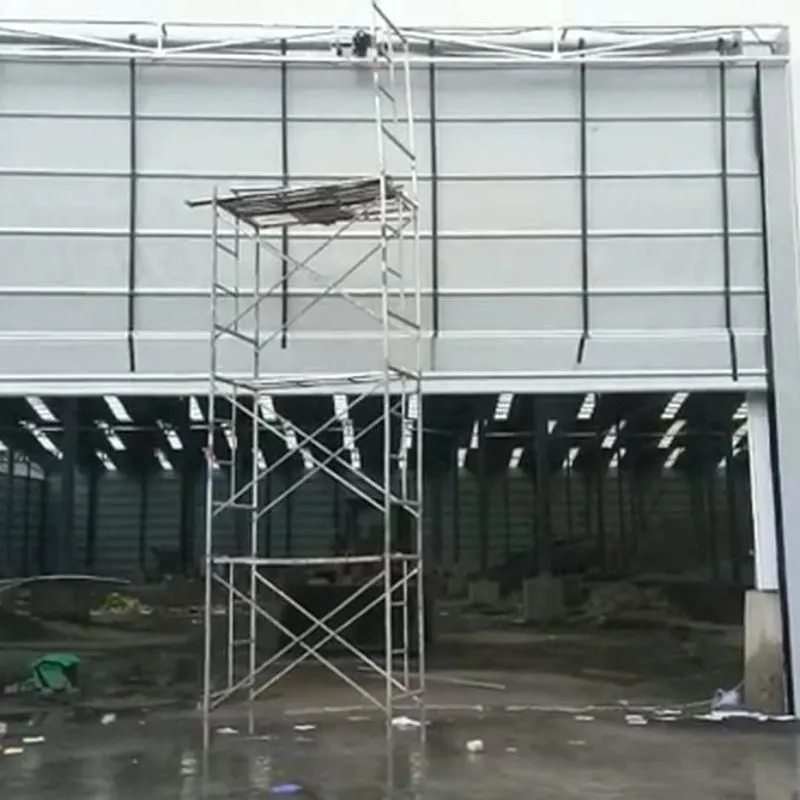

Industrial Door High-Speed Door

2、Working principle of Industrial Door High-Speed Door

The principle of Industrial Door High-Speed Door is introduced as follows:

1. Sealing and dustproof

The edge of the door curtain is designed with special sealing structures, such as brush seal and rubber strip seal. When the door is closed, these sealing structures are closely attached to the door frame to form a sealing barrier, which effectively prevents the exchange of dust, mosquitoes, cold and hot air, and keeps the indoor environment clean and constant.

2. Winding opening and closing

The special motor drives the reel to rotate, and the soft PVC or polyester fiber door curtain is wound on the reel to realize opening; When the motor rotates reversely, the door curtain falls down and closes smoothly along the track by its own gravity and the retracting and retracting action of the reel. The vertical speed and stroke of the door curtain can be adjusted by controlling the forward and reverse rotation and rotation speed of the motor.

3. Induction trigger

Infrared induction, radar induction, geomagnetic induction and other devices are installed around the door body. When people or objects enter the induction area, the induction devices transmit signals to the control system. After receiving the signal, the control system immediately sends out an instruction to start the motor and quickly open the door curtain to realize automatic induction traffic.

4. Sealing and dustproof

The edge of door curtain is usually designed with special sealing structure, such as brush seal, rubber strip seal, etc. When the door is closed, these sealing structures can be closely attached to the door frame, effectively preventing the exchange of dust, mosquitoes, cold and hot air, etc., playing a good sealing role and maintaining the stability of the indoor environment.

5. Induction opening

Equipped with a variety of sensing devices, such as infrared sensing, radar sensing, geomagnetic sensing, etc. When someone or an object approaches, the sensing device will send a signal to the control system, and the control system will drive the motor to open the door curtain after receiving the signal, so as to realize the automatic opening function and facilitate the rapid passage of people and goods.

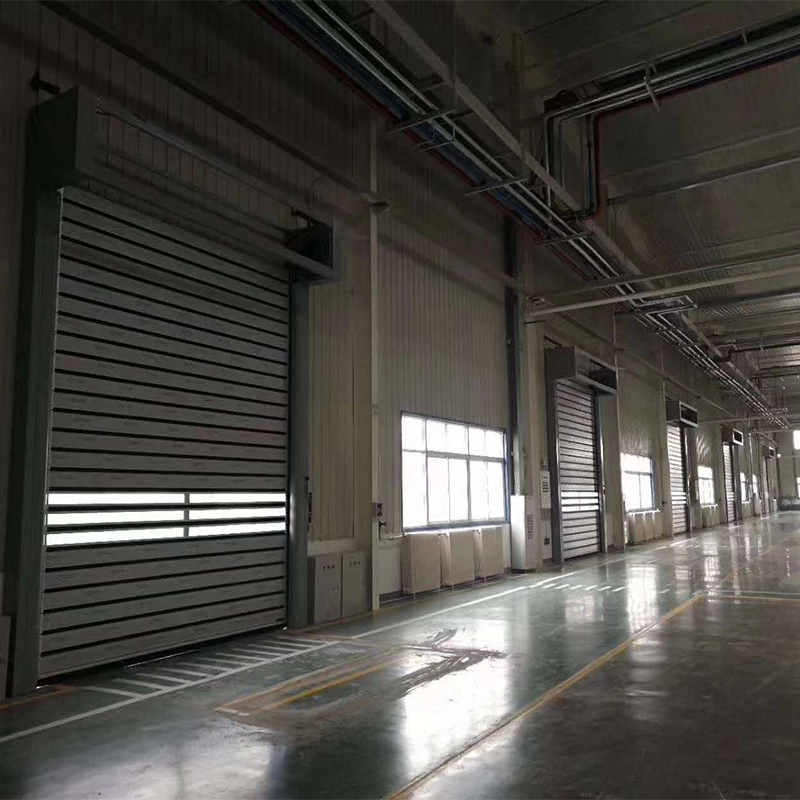

Industrial Door High-Speed Door

3、Structural characteristics of Industrial Door High-Speed Door

The Industrial Door High-Speed Door structure is introduced as follows:

1. Induction system

Equipped with infrared induction, radar induction, geomagnetic induction and other devices, real-time monitoring of the surrounding environment, automatically trigger the door curtain to open, improve traffic efficiency.

2. Track design

The nylon brushes are installed in the aluminum alloy tracks on both sides, which not only reduces the friction between the door curtain and the track, but also plays a role in sealing and dustproof, ensuring smooth operation.

3. Drive assembly

Special shutter motor is equipped with reel, and some parts are equipped with servo control system, which realizes high-speed winding and precise control of door curtain and ensures rapid opening and closing.

4. Door curtain material

High-strength polyester fiber industrial base cloth or high-quality PVC material is selected, with thin thickness and specially treated surface, which has the characteristics of wear resistance, tear resistance, waterproof and corrosion resistance.

5. safety devices

It is equipped with infrared photoelectric induction protection and a safe bottom edge (rebound when touching the bottom) to prevent people from being caught and objects from being caught, so as to provide safety guarantee for people and goods to enter and leave.

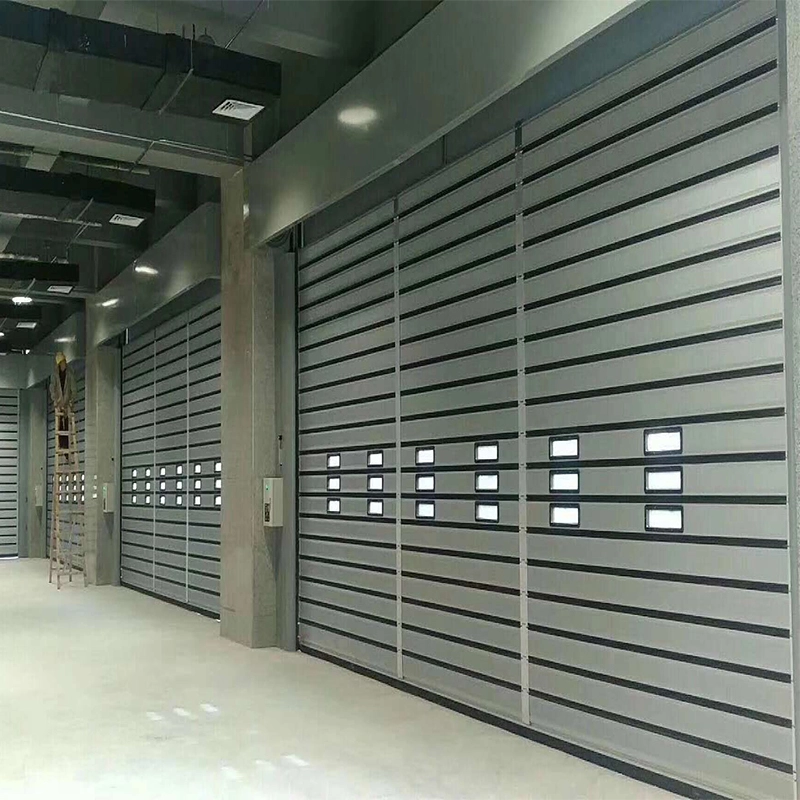

Industrial Door High-Speed Door

4、Industrial Door High-Speed Door introduction video

Speak directly with facts on the spot。

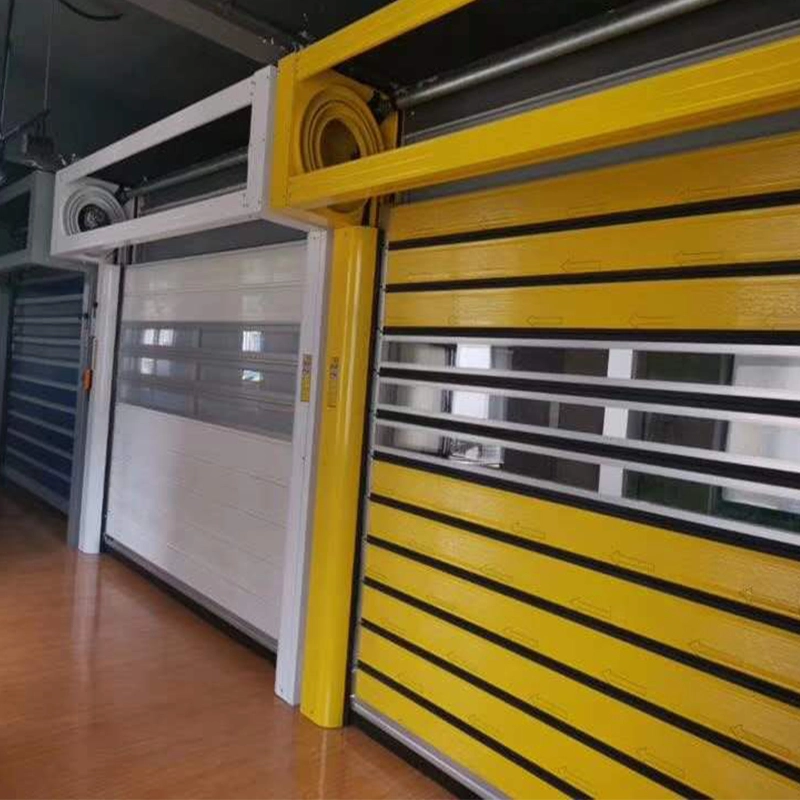

Industrial Door High-Speed Door

As you can see from the live video.，Jiangsu anbixin internet of things technology co., ltd It is a professional industrial door equipment with fast lifting design of soft curtain cloth and good sealing, heat insulation and wind resistance.。

5、Industrial Door High-Speed Door advantage

The advantages of Industrial Door High-Speed Door are as follows:

1. High speed operation

Fast opening speed, can quickly isolate the internal and external environment, improve the traffic efficiency of the place, and reduce air convection.

2. Flexible adaptation

Both sides of the track are mostly made of nylon brushes, and the overall structural design of the door body is flexible, especially suitable for installation in places with limited space. At the same time, the size and color can be customized according to the actual size of the door opening and the use scene to meet the diverse needs of different customers.

3. Sealing and dustproof

The edge sealing structure of the door curtain is good, which effectively prevents dust and mosquitoes from entering and keeps the room clean.

4. Open diversity

Support a variety of opening modes, standard configuration with double-sided operation buttons, and optional infrared radar induction, geomagnetic ring induction, remote control switch, pull rope switch, double-door interlocking linkage, license plate recognition door opening, etc., which can be freely selected according to different use scenarios and customer habits, and is convenient to use.

5. Wear resistance and flexibility

It is made of high-strength soft material, which is wear-resistant and tear-resistant, suitable for frequent opening and has long service life.

Industrial Door High-Speed Door

6、Industrial Door High-Speed Door application

Industrial Door High-Speed Door s have the following purposes.

1. Chemical production workshop

Soft material with acid and alkali resistance and corrosion resistance, suitable for special environment of chemical workshop to prevent chemical corrosion.

2. Commercial store entrance

The appearance is simple and beautiful, and the quick switch is convenient for customers to enter and leave, which saves energy and reduces the cost of air conditioning in the shop.

3. Electronic cleaning workshop

Quickly isolate external pollution, maintain the cleanliness of the workshop, and meet the high requirements of electronic components production on the environment.

4. Food packaging area

Intelligent induction quick switch reduces the waiting time of personnel, seals against dust and insects, and ensures the hygiene of food packaging.

5. Light industrial processing place

Flexible installation and low noise operation do not affect the production and operation of light industry and improve the traffic efficiency of places.

Industrial Door High-Speed Door

Industrial Door High-Speed Door multifunctional, with functions such as smooth running, Sealing and dustproof, sturdy and durable, attractive and durable and Safety protection，is a popular Industrial Door High-Speed Door 。
