What is a Ground Magnetic Sensitive High-Speed Door ? High-Speed Door specifications, models, and parameters

Ground Magnetic Sensitive High-Speed Door It is a kind of high-speed automatic door equipment suitable for industrial places.，Infrared induction, radar induction, geomagnetic induction and other devices are installed around the door body. When people or objects enter the induction area, the induction devices transmit signals to the control system. After receiving the signal, the control system immediately sends out an instruction to start the motor and quickly open the door curtain to realize automatic induction traffic.，Equipped with a variety of safety protection devices, such as infrared photoelectric induction device, when the door body detects an object below it during its descent, it will automatically rebound upward immediately to avoid being caught by people and objects; The bottom is equipped with a safety bottom edge, which can rebound when touching the bottom, further ensuring the safety of personnel and equipment entering and leaving.、Both sides of the track are mostly made of nylon brushes, and the overall structural design of the door body is flexible, especially suitable for installation in places with limited space. At the same time, the size and color can be customized according to the actual size of the door opening and the use scene to meet the diverse needs of different customers.、It is made of high-strength soft material, which is wear-resistant and tear-resistant, suitable for frequent opening and has long service life.、The used high-quality soft materials have certain thermal insulation performance, and with good sealing effect, it can reduce indoor and outdoor heat exchange, which is helpful to maintain indoor temperature stability and reduce energy consumption in places where temperature control is required, such as cold storage and food processing workshops.、The overall structural design is relatively simple, the modular degree of each component is high, the common faults are easy to check, and some vulnerable parts are easy to replace, which reduces the difficulty and cost of later maintenance, reduces the downtime caused by maintenance and ensures the long-term stable operation of the door body.，the product looks beautiful.，it is an ideal choice for customers to buy Ground Magnetic Sensitive High-Speed Door 。The following is to introduce the Ground Magnetic Sensitive High-Speed Door :

1、Brief introduction of Ground Magnetic Sensitive High-Speed Door

Ground Magnetic Sensitive High-Speed Door As an efficient and energy-saving industrial door equipment，It has a wide range of uses, and is often used inChemical production workshop,Commercial store entrance,Light industrial processing place,Electronic cleaning workshop,Food packaging area and so on，it is usually composed of Track structure, driving gear, Induction system, safety devices/installations and Door curtain material，Equipped with a variety of sensing devices, it can automatically identify people or goods, and realize rapid opening without contact, which is convenient and safe.、The imported motor with servo control system is adopted, which has fast opening speed, can be quickly opened and closed, and improves the passage efficiency. It is suitable for scenes with high requirements on logistics flow and frequent door opening and closing, such as logistics warehousing and workshops, which can effectively reduce the waiting time for cargo loading and unloading and improve the overall work efficiency.、With vertical winding design, the curtain takes up less space when rolled up, which can effectively save space resources for places where space is precious, such as urban logistics stations with land and money, and factory workshops with compact space layout.、Fast opening speed, can quickly isolate the internal and external environment, improve the traffic efficiency of the place, and reduce air convection.、Elastic PVC base cloth is installed at the bottom, which can be closely attached to uneven ground, and cushioning material is filled inside to enhance wear resistance and durability. The two sides of the doorpost are equipped with brushes with high sealing performance, which can effectively prevent insects and moth, reduce noise, significantly improve sealing effect, and effectively block dust, mosquitoes, odor and convection of hot and cold air.，The price is relatively low.。

Ground Magnetic Sensitive High-Speed Door

2、Ground Magnetic Sensitive High-Speed Door structure

The Ground Magnetic Sensitive High-Speed Door structure is introduced as follows:

1. Drive assembly

Special shutter motor is equipped with reel, and some parts are equipped with servo control system, which realizes high-speed winding and precise control of door curtain and ensures rapid opening and closing.

2. Induction system

Equipped with infrared induction, radar induction, geomagnetic induction and other devices, real-time monitoring of the surrounding environment, automatically trigger the door curtain to open, improve traffic efficiency.

3. Track design

The nylon brushes are installed in the aluminum alloy tracks on both sides, which not only reduces the friction between the door curtain and the track, but also plays a role in sealing and dustproof, ensuring smooth operation.

4. Door curtain material

High-strength polyester fiber industrial base cloth or high-quality PVC material is selected, with thin thickness and specially treated surface, which has the characteristics of wear resistance, tear resistance, waterproof and corrosion resistance.

5. safety devices

It is equipped with infrared photoelectric induction protection and a safe bottom edge (rebound when touching the bottom) to prevent people from being caught and objects from being caught, so as to provide safety guarantee for people and goods to enter and leave.

Ground Magnetic Sensitive High-Speed Door

3、Ground Magnetic Sensitive High-Speed Door principle

The Ground Magnetic Sensitive High-Speed Door has the following principles.

1. Door curtain winding

The door curtain is usually made of high-strength soft materials such as PVC or polyester fiber. The door curtain is wound or unfolded on the reel driven by a motor to realize the opening and closing of the door. Because the door curtain is soft, the winding process can be completed quickly, which improves the running speed of the door.

2. Sealing and dustproof

The edge of door curtain is usually designed with special sealing structure, such as brush seal, rubber strip seal, etc. When the door is closed, these sealing structures can be closely attached to the door frame, effectively preventing the exchange of dust, mosquitoes, cold and hot air, etc., playing a good sealing role and maintaining the stability of the indoor environment.

3. Door curtain winding

The door curtain is usually made of high-strength soft materials such as PVC or polyester fiber. The door curtain is wound or unfolded on the reel driven by a motor to realize the opening and closing of the door. Because the door curtain is soft, the winding process can be completed quickly, which improves the running speed of the door.

4. Winding opening and closing

The special motor drives the reel to rotate, and the soft PVC or polyester fiber door curtain is wound on the reel to realize opening; When the motor rotates reversely, the door curtain falls down and closes smoothly along the track by its own gravity and the retracting and retracting action of the reel. The vertical speed and stroke of the door curtain can be adjusted by controlling the forward and reverse rotation and rotation speed of the motor.

5. Induction opening

Equipped with a variety of sensing devices, such as infrared sensing, radar sensing, geomagnetic sensing, etc. When someone or an object approaches, the sensing device will send a signal to the control system, and the control system will drive the motor to open the door curtain after receiving the signal, so as to realize the automatic opening function and facilitate the rapid passage of people and goods.

Ground Magnetic Sensitive High-Speed Door

4、Ground Magnetic Sensitive High-Speed Door characteristics

The Ground Magnetic Sensitive High-Speed Door features are as follows:

1. Low noise and quiet operation

Run quietly and reduce interference.

2. Good sealing and dustproof

Keep the dust out and keep it clean.

3. Simple and quick installation

Quick installation, saving time and effort.

4. High-speed agile opening

Quick switching to improve efficiency

5. Intelligent induction control

Automatic induction, no need for manual operation.

Ground Magnetic Sensitive High-Speed Door

5、Ground Magnetic Sensitive High-Speed Door price

The Ground Magnetic Sensitive High-Speed Door price is introduced as follows:

1. Different regions

Anbixin door industryJiangsu(Province), the transportation is convenient, and the corresponding cost of transporting Ground Magnetic Sensitive High-Speed Door is low, which reduces the cost of selling Ground Magnetic Sensitive High-Speed Door by manufacturers, and the price will also decrease.

2. specifications and models

Because the specifications and models of products are different, their specifications and configurations are not the same. As we all know, the cost of products with high configuration will be higher, and vice versa, because there is a close relationship between product sales price and specifications and models.

3. Configuration difference

Configuration refers to the hardware composition of the product, which mainly includes material selection, parts selection, etc. The higher the overall configuration of the product, the higher the price of the Ground Magnetic Sensitive High-Speed Door , which is beyond doubt. Anbixin makes every product with great care in the attitude of being highly responsible to customers, so the price of Anbixin door industry Ground Magnetic Sensitive High-Speed Door is reasonable for products with the same configuration.

4. product costs

When the Ground Magnetic Sensitive High-Speed Door is produced, the materials selected by different manufacturers will be different. Some manufacturers use high-quality materials, and the price will be relatively high, while some manufacturers use ordinary materials, and the price will be lower.

5. Product technology

Each customer needs different products, wants to achieve different purposes, and has different product technical design. The higher or more advanced the technical requirements, the more the product cost will be, and the price will increase with the increase of cost. On the contrary, the price will be cheaper.

Ground Magnetic Sensitive High-Speed Door

6、Anbixin workshop real shot

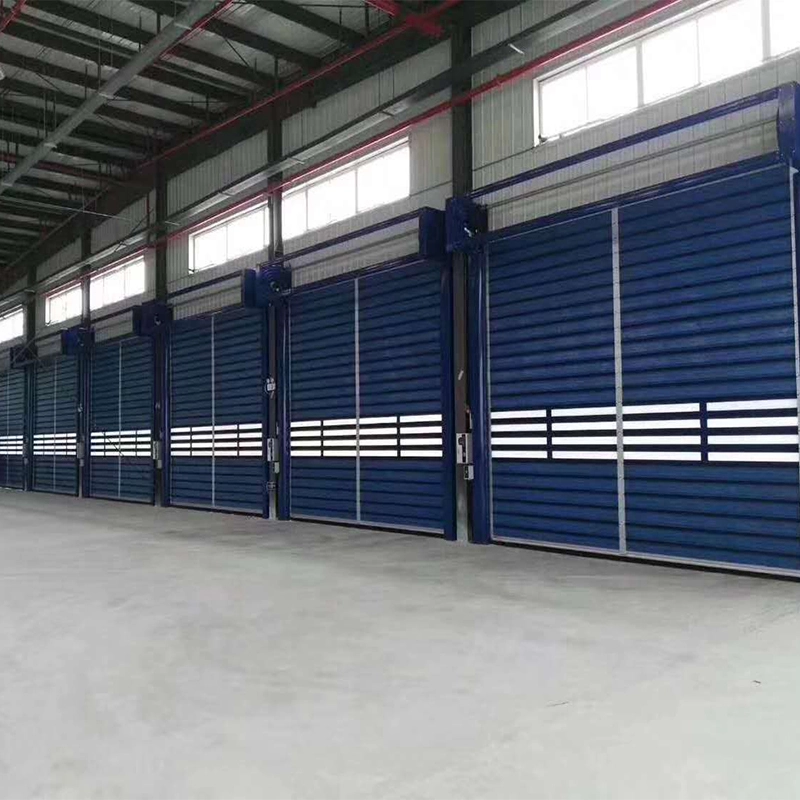

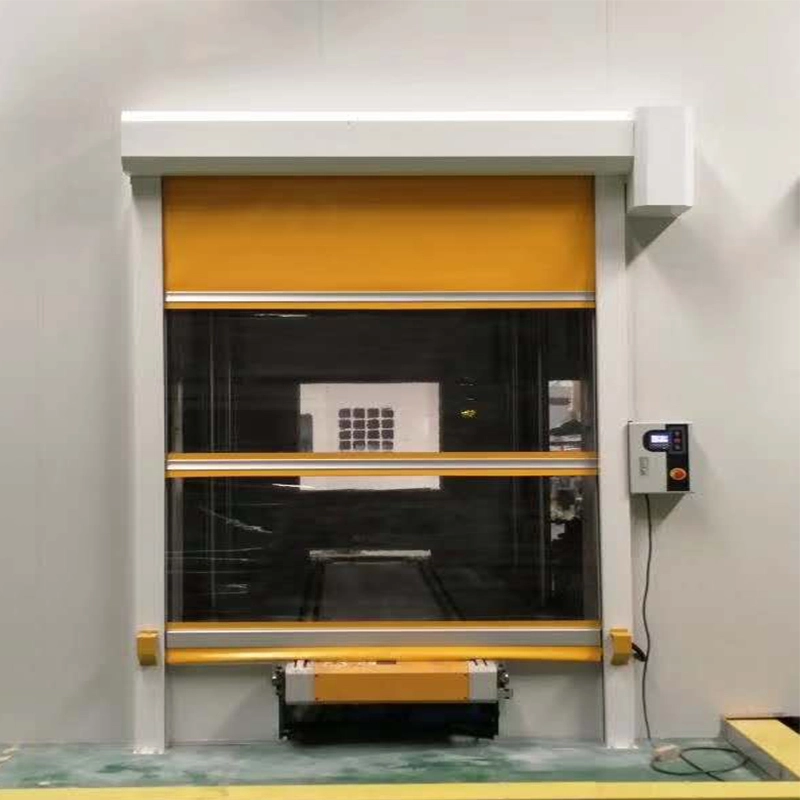

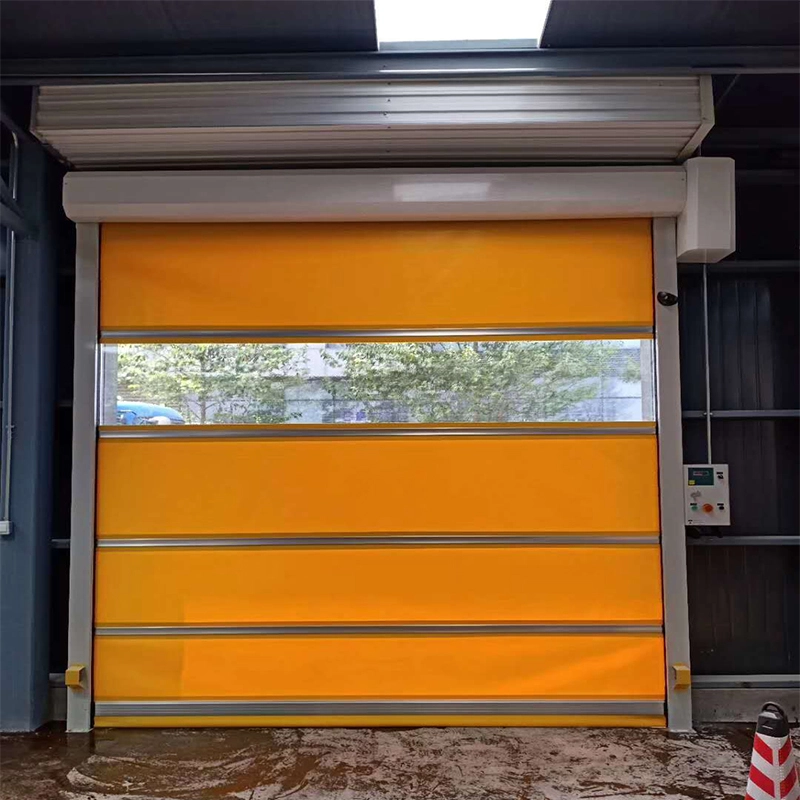

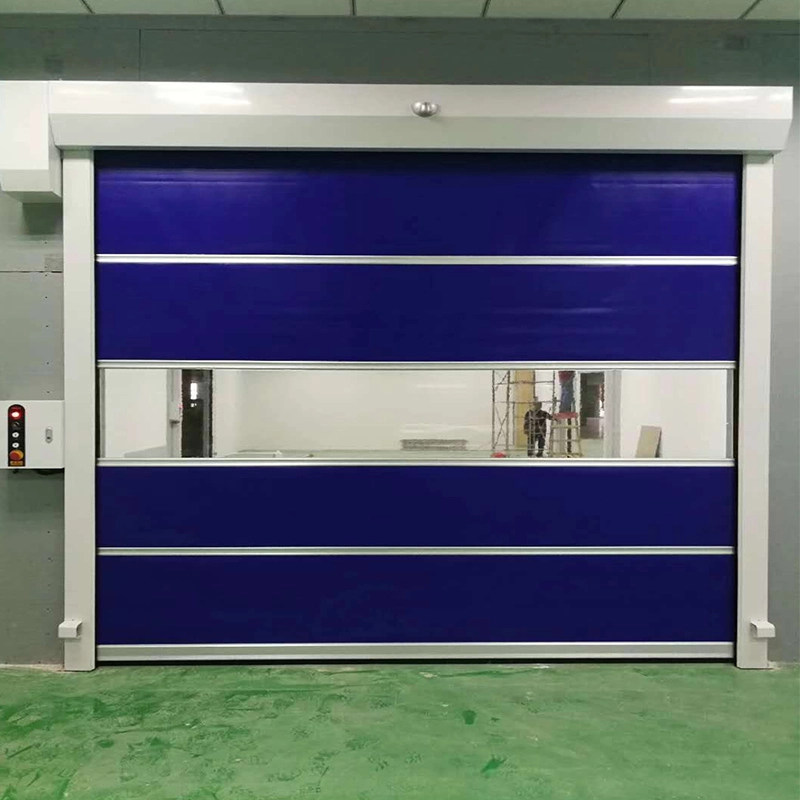

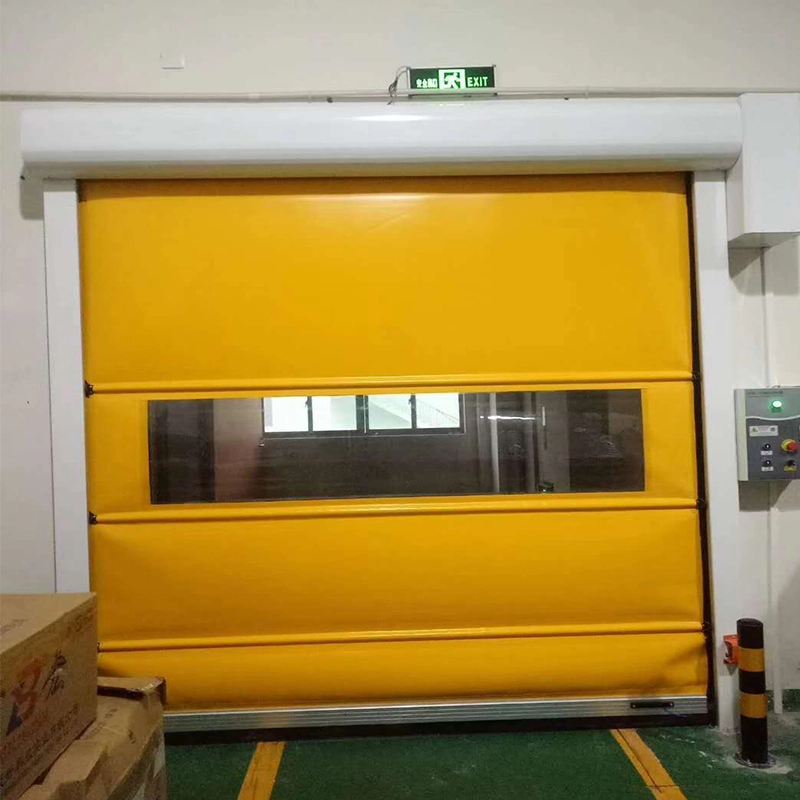

The finished products of the Ground Magnetic Sensitive High-Speed Door factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

Anbixin door industry

The finished products of the Ground Magnetic Sensitive High-Speed Door factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

Ground Magnetic Sensitive High-Speed Door the main structure includes Track structure, driving gear, safety devices/installations, Induction system and Door curtain material，Ground Magnetic Sensitive High-Speed Door Simple structure and reliable operation.，is a kind of high quality and low price Ground Magnetic Sensitive High-Speed Door ，It is a professional industrial door equipment with fast lifting design of soft curtain cloth and good sealing, heat insulation and wind resistance.。
