Introduction to Transparent Fast Door and PVC FAST Door working principle

Transparent Fast Door Also called quick shutter door, it is a high-speed door body with soft curtain as the main body.，the product looks atmospheric.，at the start of the operation,Infrared induction, radar induction, geomagnetic induction and other devices are installed around the door body. When people or objects enter the induction area, the induction devices transmit signals to the control system. After receiving the signal, the control system immediately sends out an instruction to start the motor and quickly open the door curtain to realize automatic induction traffic.，the advantage is Support a variety of opening modes, standard configuration with double-sided operation buttons, optional infrared radar induction, geomagnetic ring induction, remote control switch, pull rope switch, double-door interlocking linkage, license plate recognition door opening, mobile phone APP control switch, etc., which can be freely selected according to different usage scenarios and customer habits, and is convenient to use.、The used high-quality soft materials have certain thermal insulation performance, and with good sealing effect, it can reduce indoor and outdoor heat exchange, which is helpful to maintain indoor temperature stability and reduce energy consumption in places where temperature control is required, such as cold storage and food processing workshops.、The door curtain is made of high-strength polyester fiber industrial base cloth or high-quality PVC material, with thin thickness, and the surface is treated with PVC finish, which has excellent chemical stability such as acid resistance, alkali resistance, oil resistance and waterproof, wear resistance, tear resistance and good weather resistance, and can be used for a long time in a variety of complex environments without being easily damaged.、With vertical winding design, the curtain takes up less space when rolled up, which can effectively save space resources for places where space is precious, such as urban logistics stations with land and money, and factory workshops with compact space layout.、Elastic PVC base cloth is installed at the bottom, which can be closely attached to uneven ground, and cushioning material is filled inside to enhance wear resistance and durability. The two sides of the doorpost are equipped with brushes with high sealing performance, which can effectively prevent insects and moth, reduce noise, significantly improve sealing effect, and effectively block dust, mosquitoes, odor and convection of hot and cold air.，it is widely used in light industry, chemical industry, food, light industry, business and other industries。

1、Brief introduction of Transparent Fast Door

Transparent Fast Door Also known as high-speed soft curtain door, fast soft door or industrial soft curtain fast door.，is an advanced Transparent Fast Door developed by our company in combination with the actual situation of the industry。

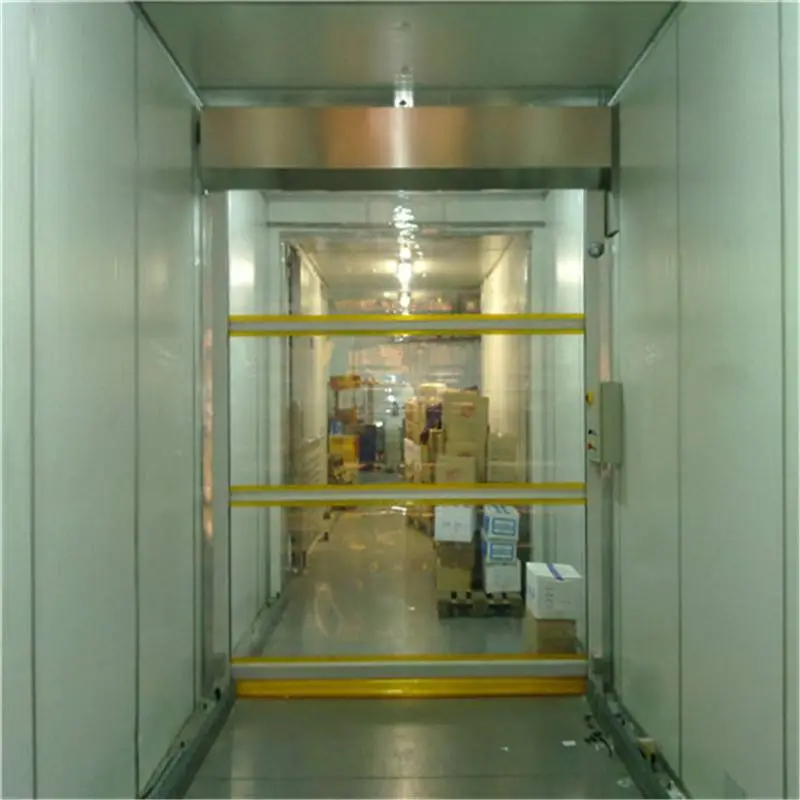

Transparent Fast Door

2、Transparent Fast Door video live broadcast

On-site aerial photography of Transparent Fast Door 。

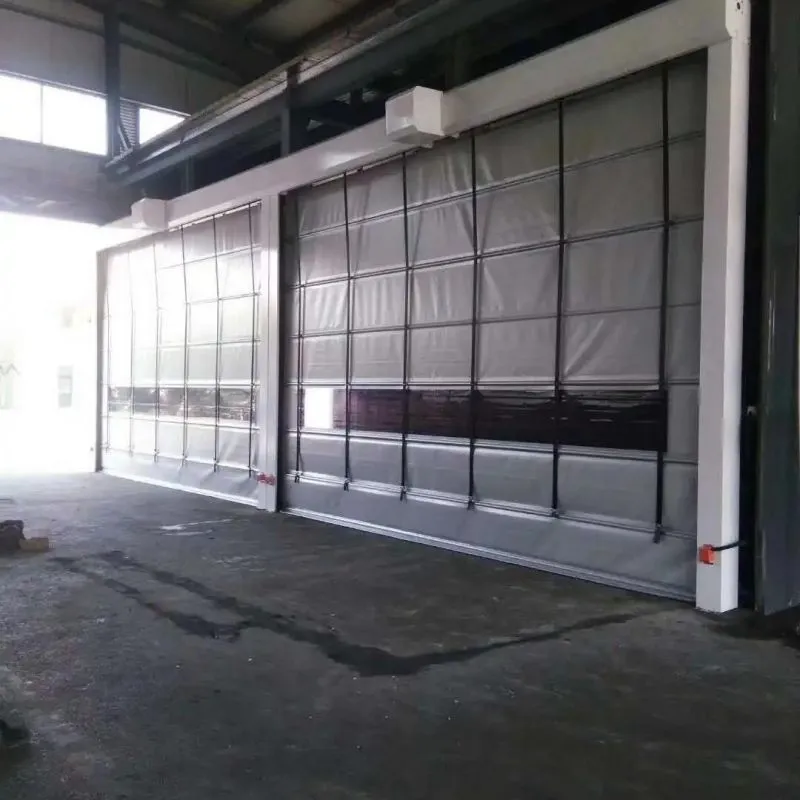

Transparent Fast Door

As you can see from the live video.，Anbixin it has the functions of Safety protection, sturdy and durable, attractive and durable, Efficient heat preservation and Flexible opening and closing。

3、Transparent Fast Door structure

The Transparent Fast Door structure is introduced as follows:

1. safety devices

It is equipped with infrared photoelectric induction protection and a safe bottom edge (rebound when touching the bottom) to prevent people from being caught and objects from being caught, so as to provide safety guarantee for people and goods to enter and leave.

2. Drive assembly

Special shutter motor is equipped with reel, and some parts are equipped with servo control system, which realizes high-speed winding and precise control of door curtain and ensures rapid opening and closing.

3. Track design

The nylon brushes are installed in the aluminum alloy tracks on both sides, which not only reduces the friction between the door curtain and the track, but also plays a role in sealing and dustproof, ensuring smooth operation.

4. Induction system

Equipped with infrared induction, radar induction, geomagnetic induction and other devices, real-time monitoring of the surrounding environment, automatically trigger the door curtain to open, improve traffic efficiency.

5. Door curtain material

High-strength polyester fiber industrial base cloth or high-quality PVC material is selected, with thin thickness and specially treated surface, which has the characteristics of wear resistance, tear resistance, waterproof and corrosion resistance.

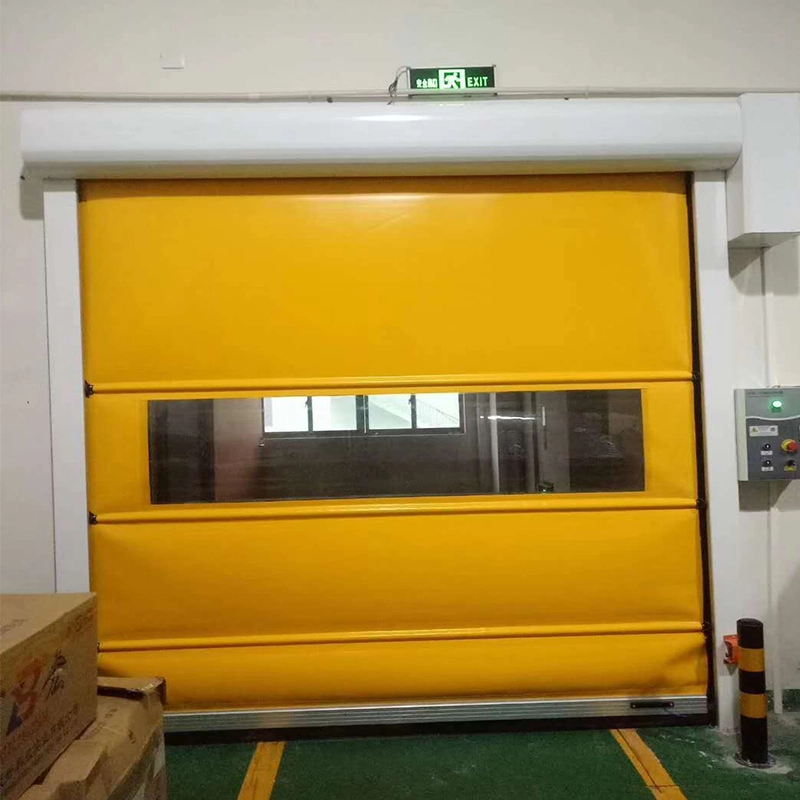

Transparent Fast Door

4、Working principle of Transparent Fast Door

The Transparent Fast Door has the following principles.

1. Door curtain winding

The door curtain is usually made of high-strength soft materials such as PVC or polyester fiber. The door curtain is wound or unfolded on the reel driven by a motor to realize the opening and closing of the door. Because the door curtain is soft, the winding process can be completed quickly, which improves the running speed of the door.

2. Induction opening

Equipped with a variety of sensing devices, such as infrared sensing, radar sensing, geomagnetic sensing, etc. When someone or an object approaches, the sensing device will send a signal to the control system, and the control system will drive the motor to open the door curtain after receiving the signal, so as to realize the automatic opening function and facilitate the rapid passage of people and goods.

3. Induction opening

Equipped with a variety of sensing devices, such as infrared sensing, radar sensing, geomagnetic sensing, etc. When someone or an object approaches, the sensing device will send a signal to the control system, and the control system will drive the motor to open the door curtain after receiving the signal, so as to realize the automatic opening function and facilitate the rapid passage of people and goods.

4. Door curtain winding

The door curtain is usually made of high-strength soft materials such as PVC or polyester fiber. The door curtain is wound or unfolded on the reel driven by a motor to realize the opening and closing of the door. Because the door curtain is soft, the winding process can be completed quickly, which improves the running speed of the door.

5. Sealing and dustproof

The edge of door curtain is usually designed with special sealing structure, such as brush seal, rubber strip seal, etc. When the door is closed, these sealing structures can be closely attached to the door frame, effectively preventing the exchange of dust, mosquitoes, cold and hot air, etc., playing a good sealing role and maintaining the stability of the indoor environment.

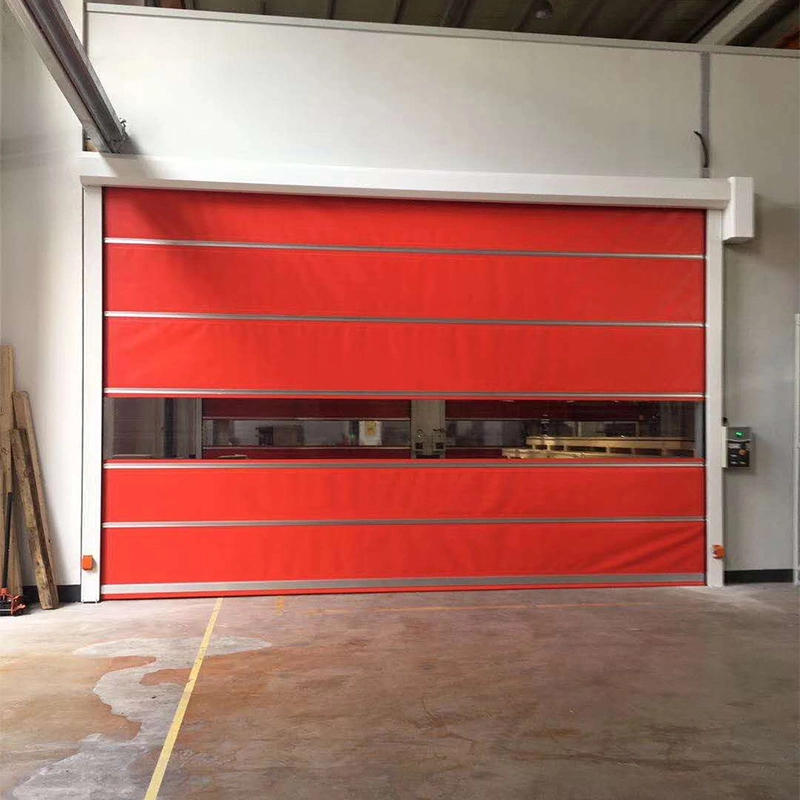

Transparent Fast Door

5、Transparent Fast Door application

Transparent Fast Door s have the following purposes.

1. Food packaging area

Intelligent induction quick switch reduces the waiting time of personnel, seals against dust and insects, and ensures the hygiene of food packaging.

2. Chemical production workshop

Soft material with acid and alkali resistance and corrosion resistance, suitable for special environment of chemical workshop to prevent chemical corrosion.

3. Electronic cleaning workshop

Quickly isolate external pollution, maintain the cleanliness of the workshop, and meet the high requirements of electronic components production on the environment.

4. Light industrial processing place

Flexible installation and low noise operation do not affect the production and operation of light industry and improve the traffic efficiency of places.

5. Commercial store entrance

The appearance is simple and beautiful, and the quick switch is convenient for customers to enter and leave, which saves energy and reduces the cost of air conditioning in the shop.

Transparent Fast Door

Transparent Fast Door it is usually composed of Track structure, Door curtain material, Induction system, driving gear and safety devices/installations，As an efficient and energy-saving industrial door equipment，The overall structural design is relatively simple, the modular degree of each component is high, the common faults are easy to check, and some vulnerable parts are easy to replace, which reduces the difficulty and cost of later maintenance, reduces the downtime caused by maintenance and ensures the long-term stable operation of the door body.、It is made of high-strength soft material, which is wear-resistant and tear-resistant, suitable for frequent opening and has long service life.、Both sides of the track are mostly made of nylon brushes, and the overall structural design of the door body is flexible, especially suitable for installation in places with limited space. At the same time, the size and color can be customized according to the actual size of the door opening and the use scene to meet the diverse needs of different customers.、The special motor for the quick door has optional power, high efficiency and low noise, which can create a relatively quiet atmosphere for the working environment such as workshops and warehouses and reduce noise interference.、The edge sealing structure of the door curtain is good, which effectively prevents dust and mosquitoes from entering and keeps the room clean.。
