What is a 10-meter large stacking door? How much is the price of the Stacking Rapid Door?

10-meter large stacking doorAlso known as flexible stacking door, high-speed stacking door or industrial stacking door, it is an automatic door body that is driven by motor and folded by multiple PVC cords to realize rapid lifting.。The following is to introduce the 10-meter large stacking door:

1、Brief introduction of 10-meter large stacking door

10-meter large stacking doorAlso called fast stacking door, it is a kind of flexible door equipment characterized by rapid lifting.，is a common 10-meter large stacking door，the product looks beautiful.，can be customized according to user's needs.。

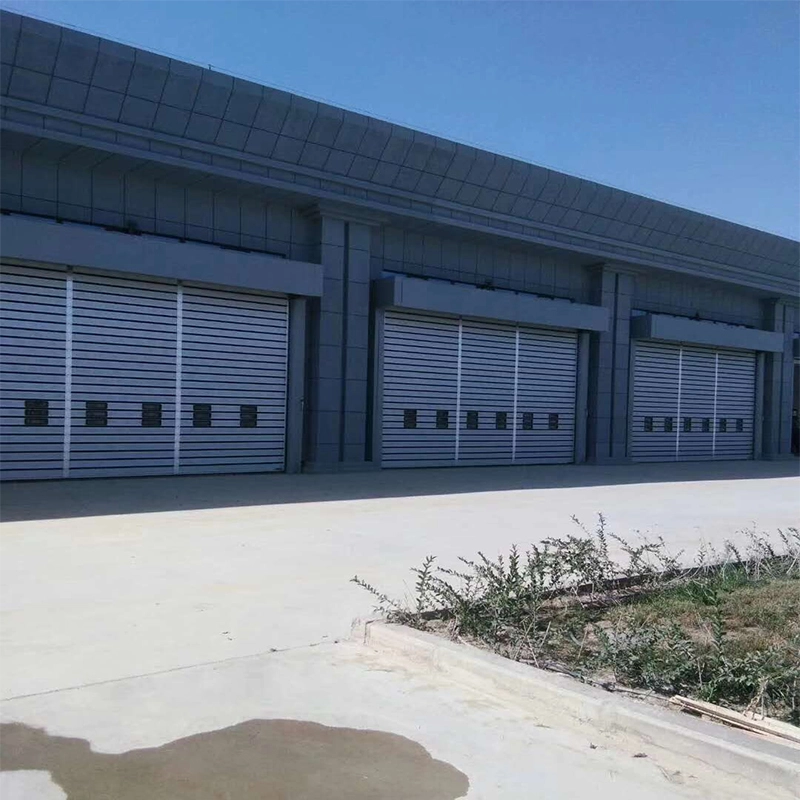

10-meter large stacking door

2、10-meter large stacking door principle

The principle of 10-meter large stacking door is introduced as follows:

1. Sealing block flow

The bottom of the door curtain is equipped with a weighted air barrier cloth or an airtight airbag, and when the door body is closed, the air barrier cloth or airbag is closely attached to the ground; Windproof brushes are installed on both sides of the doorpost, which are in close contact with the side of the door curtain. These sealing structures effectively block the entry of airflow, dust and mosquitoes, and keep the indoor environment clean and the temperature stable.

2. Folding accumulation

The door curtain is composed of several independent PVC base fabrics connected by hinges, and the motor drives the transmission mechanism to run, which drives the connector at the top of the door curtain to move upward. Each door curtain is folded in turn and stacked above the door opening like an accordion to realize the quick opening of the door body; When closed, the transmission mechanism moves in the opposite direction, and the door curtain is unfolded one by one and restored to its original state.

3. chain and sprocket drive

As a power source, the motor transmits the power to the transmission parts of the door curtain through the chain. The chain is meshed with the sprocket or gear at the top of the door curtain. When the motor rotates, the chain drives the sprocket or gear to rotate, and then drives the door curtain to fold and unfold, thus ensuring the stability and reliability of the door body.

4. Motor and transmission

Driven by motor, the door body is folded and unfolded by chain transmission system. The power of the motor is transmitted to the connection points of each door panel, so that the door panels can be folded and stacked in an orderly manner.

5. control system

Equipped with advanced control system, it can realize various control modes, such as button control, remote control and induction control. The control system can accurately control the running speed and stroke of the motor, ensure that the door body runs accurately according to the set program, and also has the safety protection function, and automatically stops or rebounds in case of obstacles.

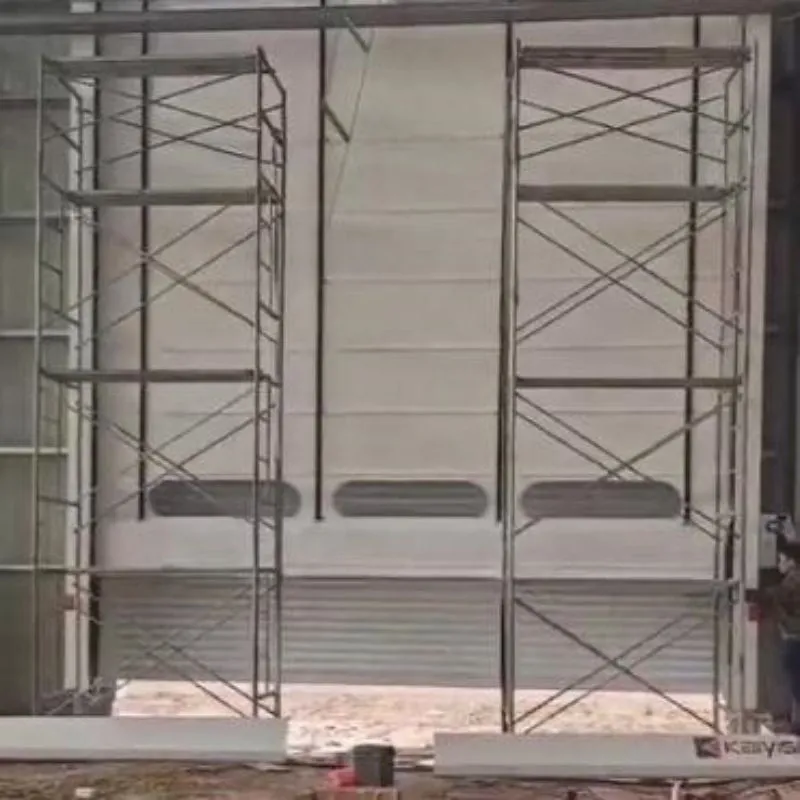

10-meter large stacking door

3、10-meter large stacking door display

The finished products of the 10-meter large stacking door factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

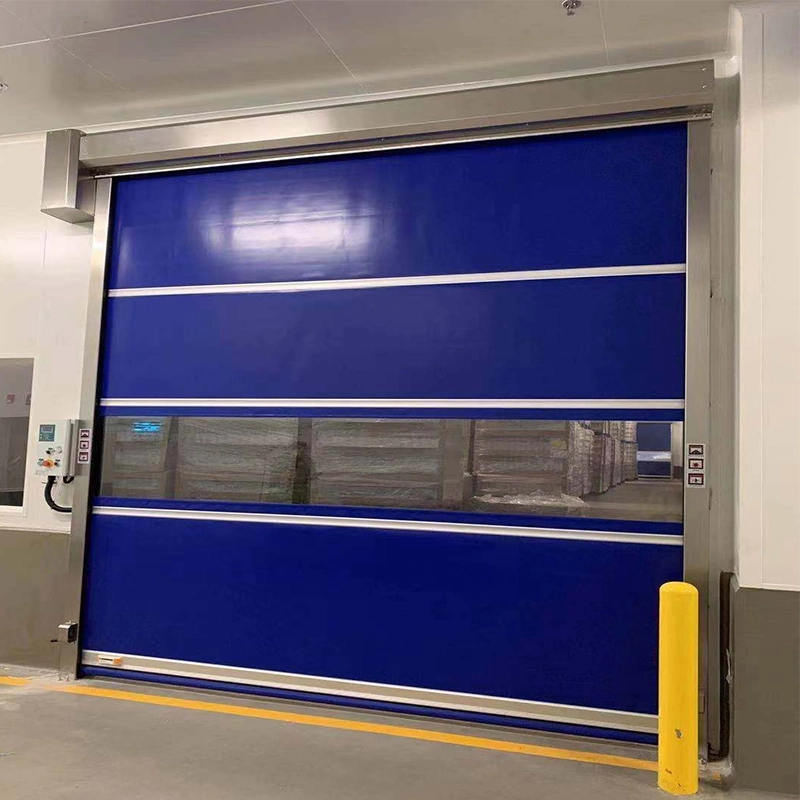

10-meter large stacking door

Note: All the pictures in this article were taken by Anbixin manufacturer.。

4、Advantages of 10-meter large stacking door principle

The 10-meter large stacking door has the following principles.

1. Sealing block flow

The bottom of the door curtain is equipped with a weighted air barrier cloth or an airtight airbag, and when the door body is closed, the air barrier cloth or airbag is closely attached to the ground; Windproof brushes are installed on both sides of the doorpost, which are in close contact with the side of the door curtain. These sealing structures effectively block the entry of airflow, dust and mosquitoes, and keep the indoor environment clean and the temperature stable.

2. Folding accumulation

The door body is composed of a plurality of door panels connected by hinges. When the door panels are opened, they are folded up and piled up above the door opening section by section like an accordion. This design can achieve a larger opening area in a limited space and is suitable for places with larger door openings. ?

3. Motor and transmission

Driven by motor, the door body is folded and unfolded by chain transmission system. The power of the motor is transmitted to the connection points of each door panel, so that the door panels can be folded and stacked in an orderly manner.

4. chain and sprocket drive

As a power source, the motor transmits the power to the transmission parts of the door curtain through the chain. The chain is meshed with the sprocket or gear at the top of the door curtain. When the motor rotates, the chain drives the sprocket or gear to rotate, and then drives the door curtain to fold and unfold, thus ensuring the stability and reliability of the door body.

5. control system

Equipped with advanced control system, it can realize various control modes, such as button control, remote control and induction control. The control system can accurately control the running speed and stroke of the motor, ensure that the door body runs accurately according to the set program, and also has the safety protection function, and automatically stops or rebounds in case of obstacles.

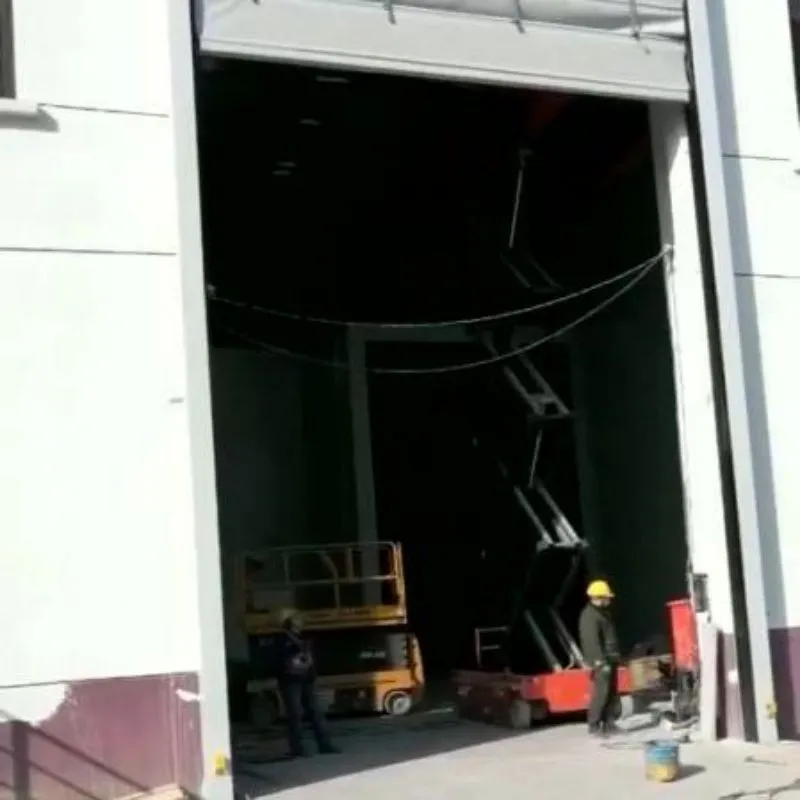

10-meter large stacking door

5、Introduction of 10-meter large stacking door characteristics

10-meter large stacking door has the following characteristics

1. Wide range of applicable scenarios

Meet the needs of various places

2. Rapid folding and stacking

Fast opening speed, saving time.

3. Small occupied space

Does not occupy the ground, and adapts to the narrow space.

4. Colorful and optional

Personalized customization, beautiful and fashionable

5. Flexible cushioning design

Reduce impact and prolong life.

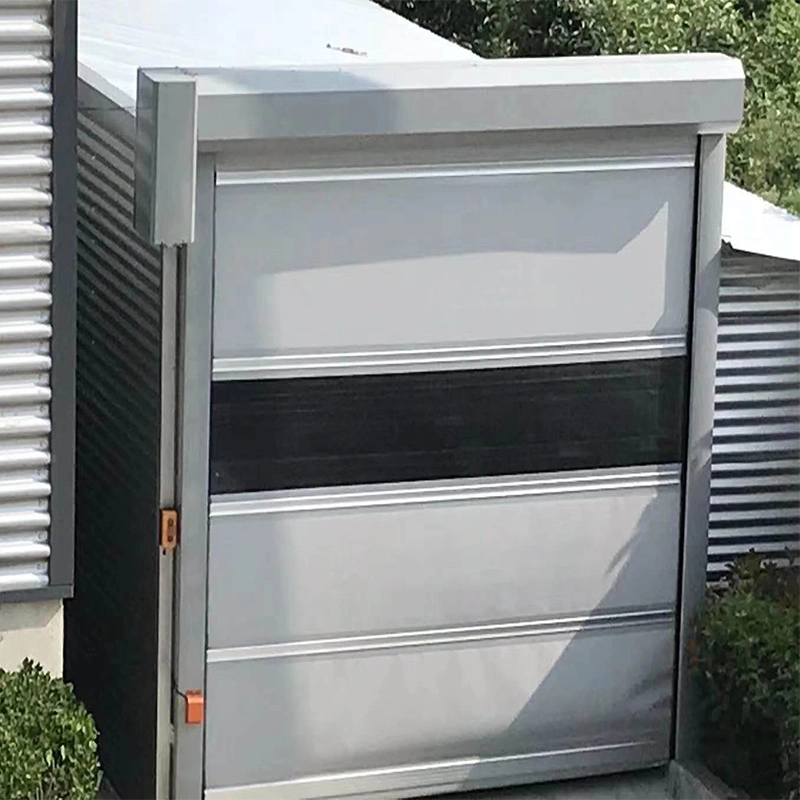

10-meter large stacking door

6、company introduction

Jiangsu anbixin internet of things technology co., ltd, located in Jiangsu(Province), is a large 10-meter large stacking door manufacturer. The 10-meter large stacking door produced have good performance, low price, reasonable structure and excellent quality. The key is reasonable price. Welcome new and old customers to visit and buy.。

Anbixin door industry

10-meter large stacking doorit can be used in logistics, spin and weave, medicine, food, Super and other industries，it has the functions of Safety protection, attractive and durable, Sound insulation and noise reduction, Wind resistance and stability and Efficient heat preservation。
