What is a Industrial counterweight type Sectional Door? Sectional Door specifications, models, and parameters

Industrial counterweight type Sectional Door It is a professional door equipment with vertical lifting mode, which can effectively save space and has good sealing and thermal insulation performance.，at work,After the motor is energized, it drives the reel to rotate, and the chain wound on the reel is tightened by the chain transmission device, so as to draw the door panel to move upward along the vertical guide rail and realize the opening of the door body; When the motor is turned off, the door panel descends smoothly along the guide rail with the help of its own gravity and balance system.，it is an ideal choice for customers to buy Industrial counterweight type Sectional Door 。The following is to introduce the Industrial counterweight type Sectional Door :

1、Brief introduction of Industrial counterweight type Sectional Door

Industrial counterweight type Sectional Door It is a kind of door equipment used for entrances and exits of industrial places, which is mainly used to realize rapid opening and closing and isolation of entrances and exits of industrial workshops, warehouses and other places.，it has the functions of Sound insulation and noise reduction, sturdy and durable, Efficient heat preservation, Flexible opening and closing and Sealing and dustproof，It has a wide range of uses, including Industrial workshop warehouse, Cold chain storage place, Logistics distribution center, Automobile manufacturing workshop and Logistics distribution center，is carefully developed by Anbixin door industry combined with advanced technology。

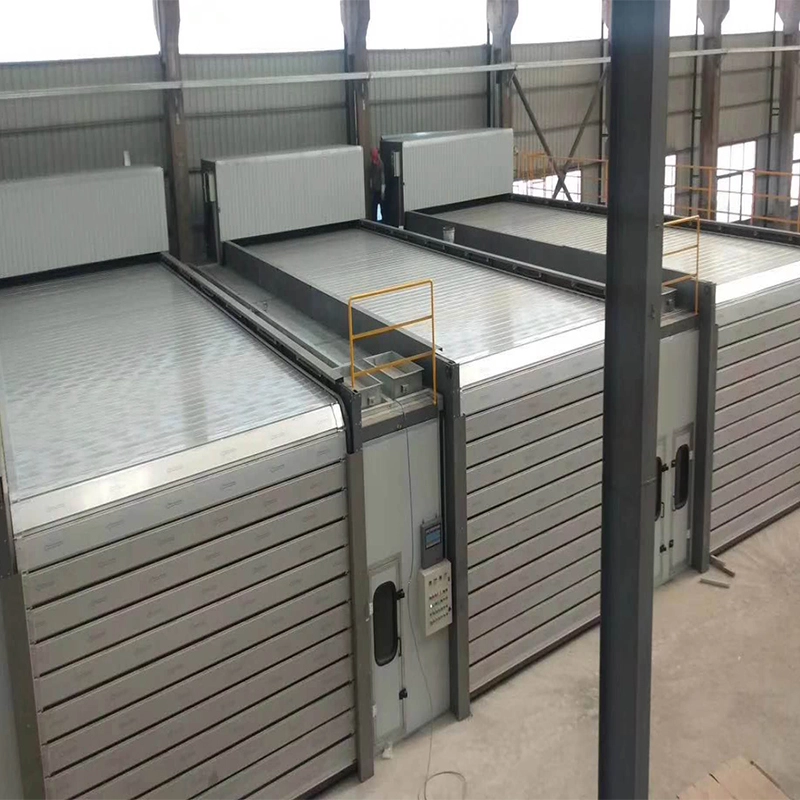

Industrial counterweight type Sectional Door

2、Structural advantages of Industrial counterweight type Sectional Door

The Industrial counterweight type Sectional Door has the following structure

1. Track assembly

Steel rails vertically installed on both sides of the door opening provide accurate guidance for the door panel, with smooth surface, reducing friction and ensuring stable and sway-free door panel lifting process.

2. driving gear

Consist of a motor, a reducer, a chain or a belt, wherein that motor drive the reel to rotate, and the door panel is lifted through a transmission part; The balance system with torsion spring or counterweight can reduce the load of motor and ensure the smooth operation of the door body.

3. control system

Including control box, operation button and remote controller, supporting manual and remote control; Some parts are equipped with automatic induction modules, which can adjust the stroke and running speed of door panels according to requirements.

4. Security configuration

Equipped with anti-falling device, airbag, wire rope fracture protection, infrared induction, etc., to ensure the safety of use in all directions and prevent accidents.

5. Door panel system

It adopts colored steel plate or steel skeleton, and is filled with heat preservation materials such as polyurethane and rock wool. After anticorrosion and antirust treatment, it has both strength and heat preservation performance.

Industrial counterweight type Sectional Door

3、Introduction of advantages of Industrial counterweight type Sectional Door

Industrial counterweight type Sectional Door s have the following advantages.

1. Various control methods

Support wireless remote control, control box button operation, but also through photoelectric or geomagnetic sensors to automatically control the opening and closing, to meet the needs of different scenes.

2. Excellent thermal insulation

Polyurethane and other filling materials can effectively block heat transfer, reduce indoor and outdoor heat exchange, reduce energy consumption and keep indoor temperature stable.

3. Run smoothly and smoothly

The motor is specially designed for industrial doors, with a power supply voltage of 220V to 380V, running smoothly and with low noise.

4. Beautiful appearance design

A variety of colors are available, and the embossed design of some door panels is not only durable, but also easy to clean, which can enhance the overall image of the building.

5. Flexible and convenient installation

There are various installation methods, and the site requirements are low. According to the size of the doorway, the space and depth of the upper and lateral parts, standard lifting, high lifting, vertical lifting and inclined top lifting can be selected.

Industrial counterweight type Sectional Door

4、Working principle of Industrial counterweight type Sectional Door

The Industrial counterweight type Sectional Door has the following principles.

1. motor drive

The motor drives the reel to rotate, and the door panel is lifted up along the guide rail by chain transmission, thus realizing the opening of the door; When it is closed, the door panel is slowly lowered by the reverse rotation of the motor.

2. Balance assist

A balance system is composed of a torsion spring or a counterweight. The torsion spring is tightened in advance to generate elastic potential energy, and the counterweight acts through gravity to form a moment that is balanced with the weight of the door. In the process of lifting the door body, the balancing system reduces the motor load, so that the door panel can easily stay at any position and reduce the running noise.

3. Guide rail guidance

Guide rails installed vertically on both sides of the door opening provide accurate guidance for the door panel. The pulley or guide device at the edge of the door panel is embedded in the guide rail groove. When the door body rises and falls, the guide rail restricts the door panel from moving in a straight line, preventing the door panel from shaking and shifting, ensuring stable operation and enhancing the sealing performance of the door body.

4. motor drive

The motor drives the reel to rotate, and the door panel is lifted up along the guide rail by chain transmission, thus realizing the opening of the door; When it is closed, the door panel is slowly lowered by the reverse rotation of the motor.

5. Reel traction

After the motor is energized, it drives the reel to rotate, and the chain wound on the reel is tightened by the chain transmission device, so as to draw the door panel to move upward along the vertical guide rail and realize the opening of the door body; When the motor is turned off, the door panel descends smoothly along the guide rail with the help of its own gravity and balance system.

Industrial counterweight type Sectional Door

5、Industrial counterweight type Sectional Door advantage

The advantages of Industrial counterweight type Sectional Door are as follows:

1. sturdy and durable

It is made of high-strength colored steel plate or steel skeleton, matched with high-quality filling materials, and treated with anti-corrosion and anti-rust, which has the advantages of impact resistance, wear resistance and long service life.

2. Excellent sealing performance

Each port of the door frame is equipped with high-quality rubber sealing strips, which can effectively block airflow, dust and rain, prevent the door from being corroded and keep the room clean and dry.

3. The material is sturdy and durable.

Door panels are usually made of double-sided color steel plates filled with polyurethane to ensure long-term use.

4. Flexible installation

A variety of lifting methods can be selected, which can be flexibly installed according to the size of the doorway and the space at the top and side of different venues, with strong adaptability.

5. Safe and reliable

Equipped with multiple safety devices such as anti-falling and infrared induction, it runs smoothly and ensures the safety of personnel and goods.

Industrial counterweight type Sectional Door

Industrial counterweight type Sectional Door at the start of the operation,A balance system is composed of a torsion spring or a counterweight. The torsion spring is tightened in advance to generate elastic potential energy, and the counterweight acts through gravity to form a moment that is balanced with the weight of the door. In the process of lifting the door body, the balancing system reduces the motor load, so that the door panel can easily stay at any position and reduce the running noise.，It is mostly used in Industrial workshop warehouse, Automobile manufacturing workshop, Aircraft maintenance depot, Cold chain storage place, Logistics distribution center, Industrial workshop warehouse and so on，Efficient heat preservation,Excellent sound insulation and noise reduction,Smooth and quiet operation,Flexible and convenient installation,Beautiful and generous appearance。
