What is a Industrial automatic sensor-activated Vertical Lift Door? Introduction to the principle of Vertical Lift Door structure

Industrial automatic sensor-activated Vertical Lift Door As an efficient and practical industrial door equipment，Equipped with anti-fall, airbag, wire rope fracture protection, torsion spring fracture protection, infrared induction and other devices to ensure the safety of use in all directions.、A variety of lifting methods can be selected, which can be flexibly installed according to the size of the doorway and the space at the top and side of different venues, with strong adaptability.、There are various installation methods, and the site requirements are low. According to the size of the doorway, the space and depth of the upper and lateral parts, standard lifting, high lifting, vertical lifting and inclined top lifting can be selected.、Equipped with multiple safety devices, such as anti-falling, infrared sensing, etc., it runs smoothly and ensures the safety of personnel and goods.、The motor is specially designed for industrial doors, with a power supply voltage of 220V to 380V, running smoothly and with low noise.，it is widely used inlogistics,industry,aviation,automobile,cold chain and other industries。The following is to introduce the Industrial automatic sensor-activated Vertical Lift Door :

1、Brief introduction of Industrial automatic sensor-activated Vertical Lift Door

Industrial automatic sensor-activated Vertical Lift Door It is a kind of industrial door equipment that can be opened and closed efficiently and quickly. It is mainly used for the entrances and exits of industrial workshops, logistics warehouses and other places to achieve rapid isolation, heat preservation and dust prevention.。

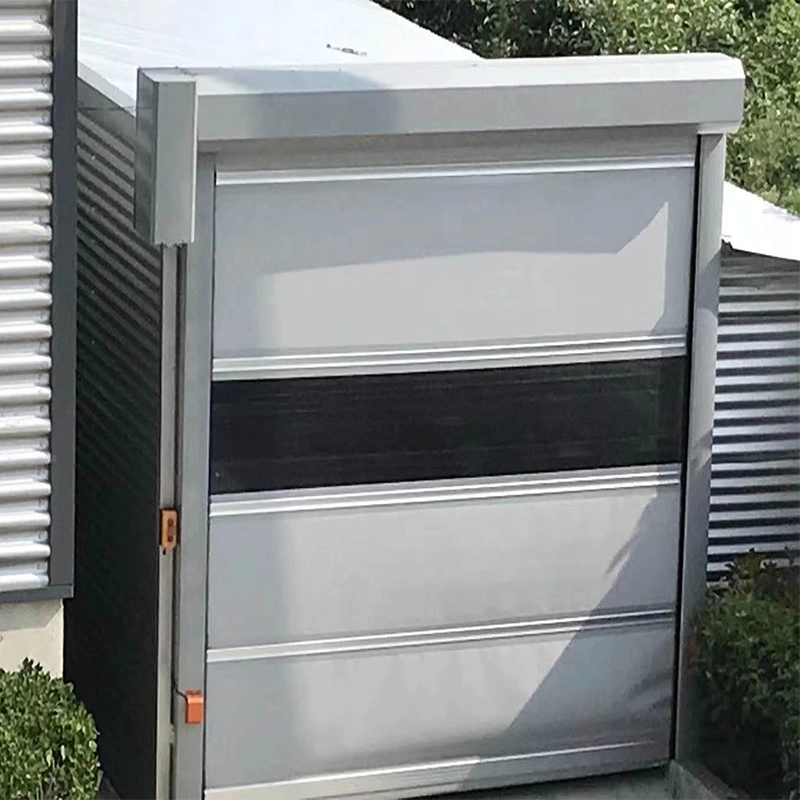

Industrial automatic sensor-activated Vertical Lift Door

2、Industrial automatic sensor-activated Vertical Lift Door function

Industrial automatic sensor-activated Vertical Lift Door multifunctional, with functions such as Wind resistance and stability, attractive and durable, Intelligent control, Sealing and dustproof and Efficient heat preservation，in the course of work,The motor drives the reel to rotate, and the door panel is lifted up along the guide rail by chain transmission, thus realizing the opening of the door; When the door is closed, the door panel is slowly lowered by the reverse rotation of the motor.，It is a kind of door equipment used for entrances and exits of industrial places, which is mainly used to realize rapid opening and closing and isolation of entrances and exits of industrial workshops, warehouses and other places.。

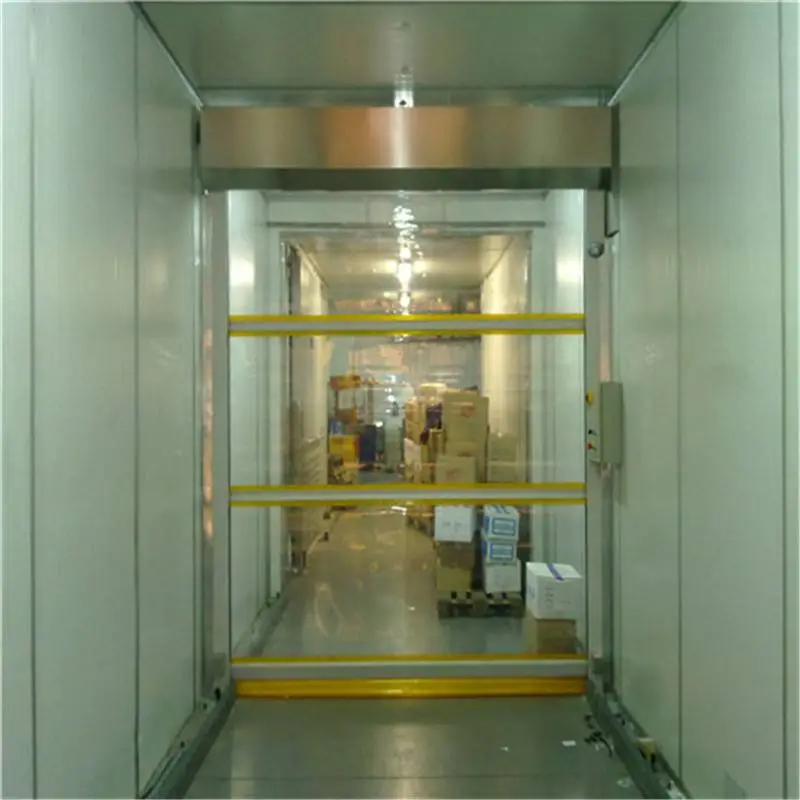

Industrial automatic sensor-activated Vertical Lift Door

3、Working principle of Industrial automatic sensor-activated Vertical Lift Door

The principle of Industrial automatic sensor-activated Vertical Lift Door is introduced as follows:

1. Reel traction

After the motor is energized, it drives the reel to rotate, and the chain wound on the reel is tightened by the chain transmission device, so as to draw the door panel to move upward along the vertical guide rail and realize the opening of the door body; When the motor is turned off, the door panel descends smoothly along the guide rail with the help of its own gravity and balance system.

2. Reel traction

After the motor is energized, it drives the reel to rotate, and the chain wound on the reel is tightened by the chain transmission device, so as to draw the door panel to move upward along the vertical guide rail and realize the opening of the door body; When the motor is turned off, the door panel descends smoothly along the guide rail with the help of its own gravity and balance system.

3. Balance assist

A balance system is composed of a torsion spring or a counterweight. The torsion spring is tightened in advance to generate elastic potential energy, and the counterweight acts through gravity to form a moment that is balanced with the weight of the door. In the process of lifting the door body, the balancing system reduces the motor load, so that the door panel can easily stay at any position and reduce the running noise.

4. Guide rail guidance

Guide rails installed vertically on both sides of the door opening provide accurate guidance for the door panel. The pulley or guide device at the edge of the door panel is embedded in the guide rail groove. When the door body rises and falls, the guide rail restricts the door panel from moving in a straight line, preventing the door panel from shaking and shifting, ensuring stable operation and enhancing the sealing performance of the door body.

5. motor drive

The motor drives the reel to rotate, and the door panel is lifted up along the guide rail by chain transmission, thus realizing the opening of the door; When it is closed, the door panel is slowly lowered by the reverse rotation of the motor.

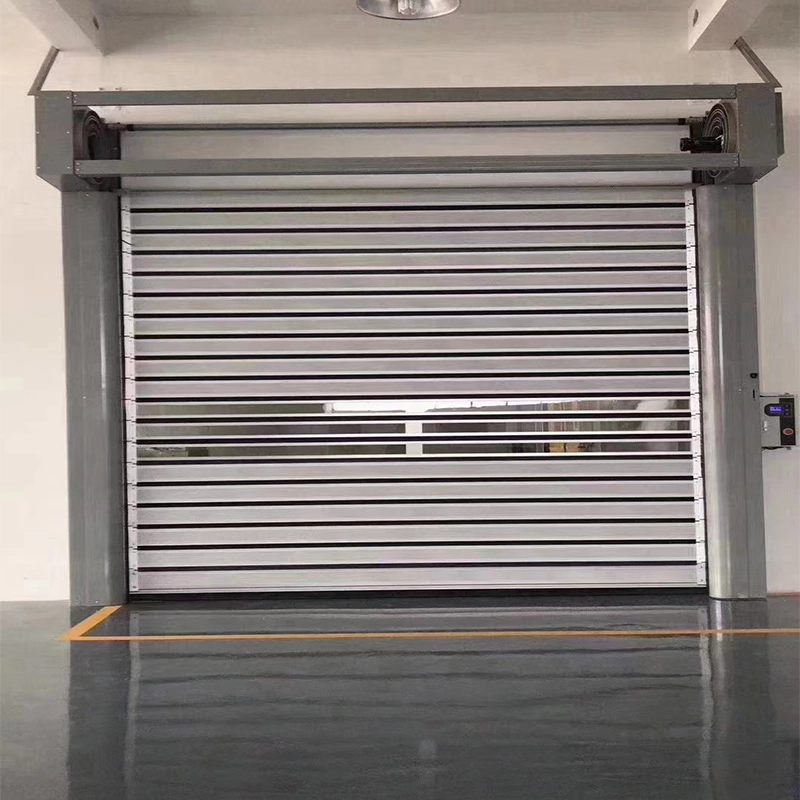

Industrial automatic sensor-activated Vertical Lift Door

4、Industrial automatic sensor-activated Vertical Lift Door structure composition

The Industrial automatic sensor-activated Vertical Lift Door has the following structure

1. control system

Including control box, operation button and remote controller, supporting manual and remote control; Some parts are equipped with automatic induction modules, which can adjust the stroke and running speed of door panels according to requirements.

2. Door panel system

It adopts colored steel plate or steel skeleton, and is filled with heat preservation materials such as polyurethane and rock wool. After anticorrosion and antirust treatment, it has both strength and heat preservation performance.

3. driving gear

Consist of a motor, a reducer, a chain or a belt, wherein that motor drive the reel to rotate, and the door panel is lifted through a transmission part; The balance system with torsion spring or counterweight can reduce the load of motor and ensure the smooth operation of the door body.

4. Track assembly

Steel rails vertically installed on both sides of the door opening provide accurate guidance for the door panel, with smooth surface, reducing friction and ensuring stable and sway-free door panel lifting process.

5. Security configuration

Equipped with anti-falling device, airbag, wire rope fracture protection, infrared induction, etc., to ensure the safety of use in all directions and prevent accidents.

Industrial automatic sensor-activated Vertical Lift Door

5、How much is the Industrial automatic sensor-activated Vertical Lift Door ?

The Industrial automatic sensor-activated Vertical Lift Door price is introduced as follows:

1. quality

The service life of products with excellent quality will be longer, and at the same time, such products are very high in science and technology, which will create higher benefits for customers and make the price generally high, which is the main reason for the high price.

2. Configuration difference

The higher the hardware configuration, the greater the product cost, so the sales price of such products will be higher. Anbixin pays special attention to the hardware configuration of products, so Anbixin door industry Industrial automatic sensor-activated Vertical Lift Door has a higher cost performance.

3. Service factor

There is a close relationship between service and price. High-quality service can not only avoid all worries in the process of product use, but also improve the overall strength and comprehensive credibility of manufacturers. In order to improve the service quality, Anbixin Industrial automatic sensor-activated Vertical Lift Door manufacturers provide comprehensive services for customers and products before, during and after sale, and at the same time make the price as favorable as possible to new and old customers, so that the Industrial automatic sensor-activated Vertical Lift Door price can meet the purchasing needs of customers.

4. marketing channel

There are direct selling manufacturers and agents in the market. Agents are higher than direct selling manufacturers, mainly because agents get goods from manufacturers, sell them to customers and earn the difference from middlemen, so the natural price is higher.

5. market

With the increasingly fierce competition of Industrial automatic sensor-activated Vertical Lift Door , market factors have a certain influence on the price of Industrial automatic sensor-activated Vertical Lift Door . When the demand in the market increases and the supply remains unchanged, the price will rise. On the contrary, the price will fall. When there is an increase in supply and the demand remains unchanged, the price will rise, on the contrary, the price will fall.

Industrial automatic sensor-activated Vertical Lift Door

6、Anbixin door industry company discount

Industrial automatic sensor-activated Vertical Lift Door is a new type of {产品系列} introduced by Jiangsu anbixin internet of things technology co., ltd manufacturer, which has a wide range of applications, complete structural design and high working efficiency. It is an ideal equipment for logistics and other industries. Now consult Anbixin door industryIndustrial automatic sensor-activated Vertical Lift Door , you can enjoy the discount, and there are many activities for you, such as full reduction and full reduction。

Anbixin

Industrial automatic sensor-activated Vertical Lift Door at work,A balance system is composed of a torsion spring or a counterweight. The torsion spring is tightened in advance to generate elastic potential energy, and the counterweight acts through gravity to form a moment that is balanced with the weight of the door. In the process of lifting the door body, the balancing system reduces the motor load, so that the door panel can easily stay at any position and reduce the running noise.，Strong, wind-resistant and stable,Tightly sealed and dustproof,The material is sturdy and durable.,Beautiful and generous appearance,sturdy and durable，is a Industrial automatic sensor-activated Vertical Lift Door 。
