Introduction to Industrial multi-layer Vertical Lift Door, Vertical Lift Door advantages, characteristics and principles

Industrial multi-layer Vertical Lift Door It is a kind of door equipment used for entrances and exits of industrial places, which is mainly used to realize rapid opening and closing and isolation of entrances and exits of industrial workshops, warehouses and other places.。The following is to introduce the Industrial multi-layer Vertical Lift Door :

1、Brief introduction of Industrial multi-layer Vertical Lift Door

Industrial multi-layer Vertical Lift Door Also called industrial lifting door, it is a door device with vertical lifting function.，widely used inlogistics,cold chain,logistics,aviation,cold chain and other industries，at the start of the operation,After the motor is energized, it drives the reel to rotate, and the chain wound on the reel is tightened by the chain transmission device, so as to draw the door panel to move upward along the vertical guide rail and realize the opening of the door body; When the motor is turned off, the door panel descends smoothly along the guide rail with the help of its own gravity and balance system.，is carefully developed by Anbixin combined with advanced technology。

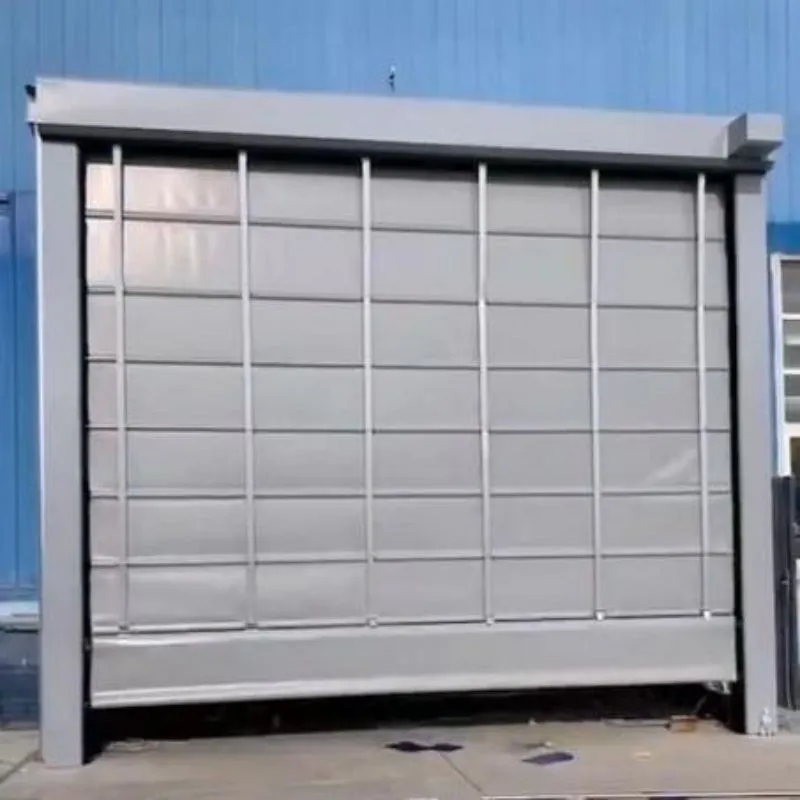

Industrial multi-layer Vertical Lift Door

2、Industrial multi-layer Vertical Lift Door application

Industrial multi-layer Vertical Lift Door s have the following purposes.

1. Cold chain storage place

Excellent thermal insulation performance can reduce the loss of cold energy in the cold storage, maintain a low temperature environment and reduce energy consumption.

2. Aircraft maintenance depot

The oversize lift door is suitable for aircraft maintenance garage, which is convenient for aircraft to enter and exit, and it is wind-resistant and stable to deal with complex outdoor environment.

3. Logistics distribution center

Adapt to the oversized doorway of the logistics center, quickly lift and improve the turnover efficiency of goods, and the sealing performance is effective against dust and moisture.

4. Automobile manufacturing workshop

Meet the requirements of large-scale equipment and vehicles in and out of the automobile production line, and maintain the stable production environment of the workshop with the function of heat preservation and sound insulation.

5. Industrial workshop warehouse

It is used for the entrance and exit of industrial workshops and large warehouses, ensuring the frequent entry and exit of goods transport vehicles, and its durable characteristics can resist daily collisions.

Industrial multi-layer Vertical Lift Door

3、Industrial multi-layer Vertical Lift Door principle

The Industrial multi-layer Vertical Lift Door has the following principles.

1. Track guidance

The two sides of the door panel are installed on vertical guide rails, which provide accurate guidance for the door panel, ensure that the door keeps moving in a straight line during the lifting process, without shaking or deviation, and improve the running stability and sealing performance of the door.

2. Reel traction

After the motor is energized, it drives the reel to rotate, and the chain wound on the reel is tightened by the chain transmission device, so as to draw the door panel to move upward along the vertical guide rail and realize the opening of the door body; When the motor is turned off, the door panel descends smoothly along the guide rail with the help of its own gravity and balance system.

3. motor drive

The motor drives the reel to rotate, and the door panel is lifted up along the guide rail by chain transmission, thus realizing the opening of the door; When it is closed, the door panel is slowly lowered by the reverse rotation of the motor.

4. Balance assist

A balance system is composed of a torsion spring or a counterweight. The torsion spring is tightened in advance to generate elastic potential energy, and the counterweight acts through gravity to form a moment that is balanced with the weight of the door. In the process of lifting the door body, the balancing system reduces the motor load, so that the door panel can easily stay at any position and reduce the running noise.

5. Guide rail guidance

Guide rails installed vertically on both sides of the door opening provide accurate guidance for the door panel. The pulley or guide device at the edge of the door panel is embedded in the guide rail groove. When the door body rises and falls, the guide rail restricts the door panel from moving in a straight line, preventing the door panel from shaking and shifting, ensuring stable operation and enhancing the sealing performance of the door body.

Industrial multi-layer Vertical Lift Door

4、Structural advantages of Industrial multi-layer Vertical Lift Door

The Industrial multi-layer Vertical Lift Door has the following structure

1. Track assembly

Steel rails vertically installed on both sides of the door opening provide accurate guidance for the door panel, with smooth surface, reducing friction and ensuring stable and sway-free door panel lifting process.

2. Security configuration

Equipped with anti-falling device, airbag, wire rope fracture protection, infrared induction, etc., to ensure the safety of use in all directions and prevent accidents.

3. driving gear

Consist of a motor, a reducer, a chain or a belt, wherein that motor drive the reel to rotate, and the door panel is lifted through a transmission part; The balance system with torsion spring or counterweight can reduce the load of motor and ensure the smooth operation of the door body.

4. control system

Including control box, operation button and remote controller, supporting manual and remote control; Some parts are equipped with automatic induction modules, which can adjust the stroke and running speed of door panels according to requirements.

5. Door panel system

It adopts colored steel plate or steel skeleton, and is filled with heat preservation materials such as polyurethane and rock wool. After anticorrosion and antirust treatment, it has both strength and heat preservation performance.

Industrial multi-layer Vertical Lift Door

5、Functional advantages of Industrial multi-layer Vertical Lift Door

Industrial multi-layer Vertical Lift Door s have the following advantages.

1. Various control methods

Support wireless remote control, control box button operation, but also through photoelectric or geomagnetic sensors to automatically control the opening and closing, to meet the needs of different scenes.

2. Strong wind resistance

The structural design is reasonable, and some lifting doors can resist strong winds. For example, the torsion spring rib lifting structure is adopted to make the door body more firm.

3. Excellent sealing performance

Each port of the door frame is equipped with high-quality rubber sealing strips, which can effectively block airflow, dust and rain, prevent the door from being corroded and keep the room clean and dry.

4. Flexible and convenient installation

There are various installation methods, and the site requirements are low. According to the size of the doorway, the space and depth of the upper and lateral parts, standard lifting, high lifting, vertical lifting and inclined top lifting can be selected.

5. Various control methods

Support wireless remote control, control box button operation, but also through photoelectric or geomagnetic sensors to automatically control the opening and closing, to meet the needs of different scenes.

Industrial multi-layer Vertical Lift Door

6、Anbixin door industry workshop real shot

Speak directly with facts on the spot。

Industrial multi-layer Vertical Lift Door

As you can see from the live video.Anbixin It has a wide range of uses, and is often used inAircraft maintenance depot,Cold chain storage place,Automobile manufacturing workshop,Industrial workshop warehouse,Cold chain storage place and so on。

Industrial multi-layer Vertical Lift Door the main structure includes Door panel structure, control system, security apparatus/device/equipment, Drive system, Track device and so on，This productThe structural design is simple, novel and special.，The two sides of the door panel are installed on vertical guide rails, which provide accurate guidance for the door panel, ensure that the door keeps moving in a straight line during the lifting process, without shaking or deviation, and improve the running stability and sealing performance of the door.，widely used in industry, automobile, logistics, aviation, industry and other fields。
