Introduction to Factory fast stacking door, advantages, characteristics and principles of Stacking Rapid Door

Factory fast stacking doorAlso known as flexible stacking door, high-speed stacking door or industrial stacking door.，can be customized according to user's needs.。

1、Brief introduction of Factory fast stacking door

Factory fast stacking doorAlso known as flexible stacking door, high-speed stacking door or industrial stacking door, it is an automatic door body that is driven by motor and folded by multiple PVC cords to realize rapid lifting.，The door curtain is built with high-strength polyester fiber mesh cloth, which can resist 8-10 strong winds and keep the door body stable with the side border defense air brush and bottom weighted air insulation cloth.、Modular design, easy replacement of door curtain, motor and other parts, simple troubleshooting, and wear-resistant and aging-resistant materials, long service life and reduced maintenance frequency.、The folding and stacking design of the door body has fast opening speed, greatly improving the traffic efficiency and reducing the waiting time.、The opening speed is fast, the waiting time is shortened, the traffic efficiency is improved, and it is suitable for high-flow places such as logistics channels.、Quickly open and close to reduce air convection, with the door curtain made of high-efficiency thermal insulation material, reduce indoor heat or cold air loss and save energy consumption of air conditioning.，at work,The door body is composed of a plurality of door panels connected by hinges. When the door panels are opened, they are folded up and stacked above the door opening section by section like an accordion. This design can achieve a larger opening area in a limited space and is suitable for places with larger door openings.，it has the functions of Intelligent control, sturdy and durable, Sealing and dustproof, Safety protection and Efficient heat preservation，the main structure includes control system, Track system, Drive system, Door curtain structure, Bottom device and so on。

Factory fast stacking door

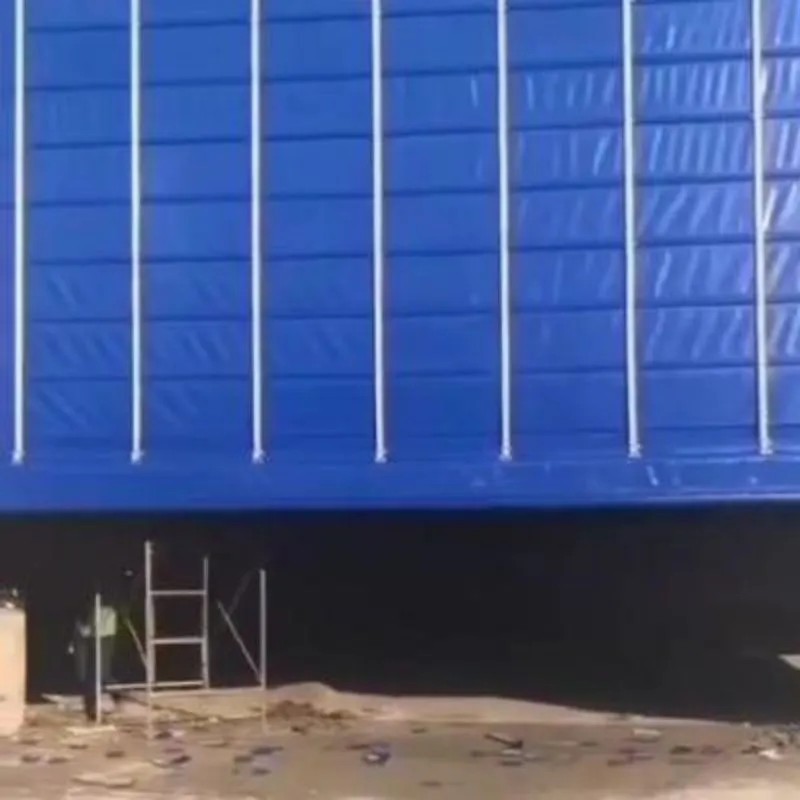

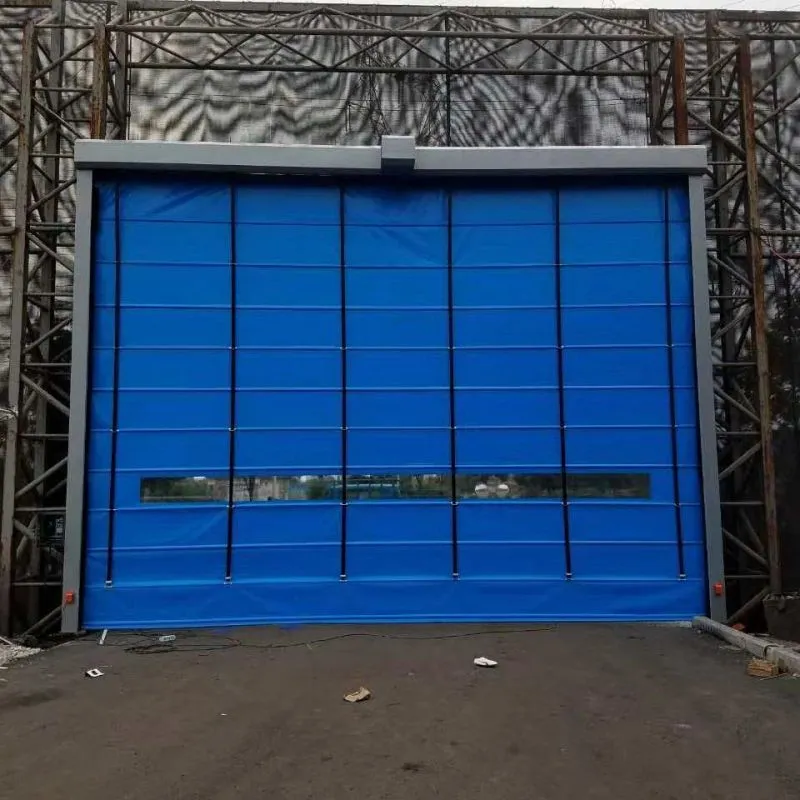

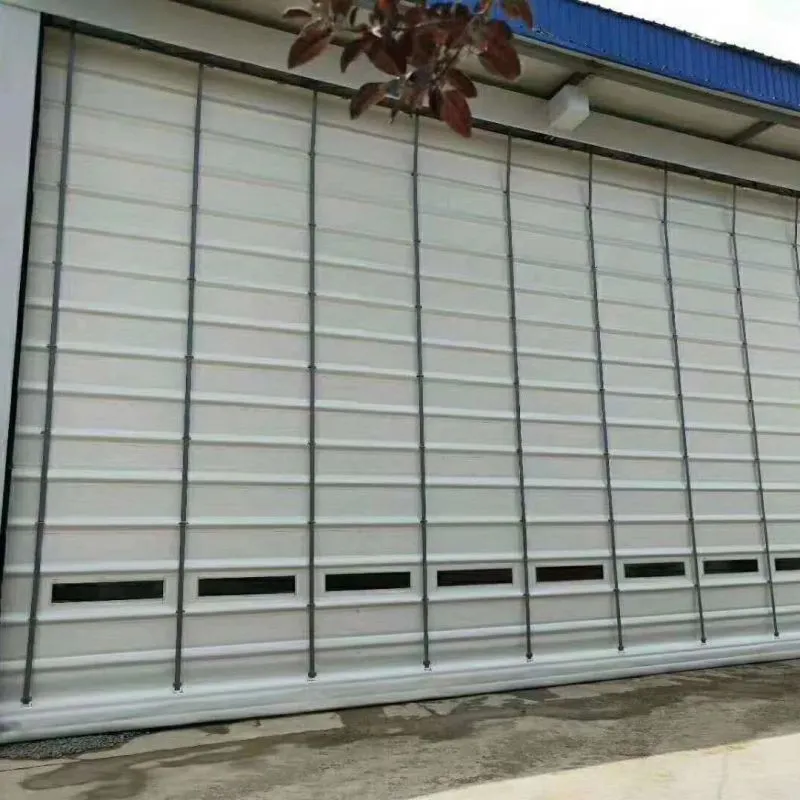

2、Factory fast stacking door work site real shot

Different specifications and models of high-definition pictures, so that everyone can see enough at once.。

Factory fast stacking door

Note: All the pictures in this article were taken by Anbixin manufacturer.。

3、Factory fast stacking door function

Factory fast stacking doormultifunctional, with functions such as Flexible opening and closing, smooth running, Sound insulation and noise reduction, Wind resistance and stability and attractive and durable，As a high-performance industrial door equipment，the main features are Excellent seal, Good wind resistance, Quick opening and closing, Good energy-saving effect and Adapt to a wide range of environments，it is mainly composed of control system, Track system, Drive system, Door curtain structure and Bottom device，It has the functions of Medicine warehouse, Large supermarket back door, Logistics high-speed channel, Textile and garment warehouse and Food processing workshop。

Factory fast stacking door

4、Video analysis of Factory fast stacking door

On-site aerial photography of Factory fast stacking door。

Factory fast stacking door

As you can see from the live video.，Anbixin door industry is a kind of high quality and low price Factory fast stacking door。

5、Advantages of Factory fast stacking door principle

The principle of Factory fast stacking door is introduced as follows:

1. Folding accumulation

The door curtain is composed of several independent PVC base fabrics connected by hinges, and the motor drives the transmission mechanism to run, which drives the connector at the top of the door curtain to move upward. Each door curtain is folded in turn and stacked above the door opening like an accordion to realize the quick opening of the door body; When closed, the transmission mechanism moves in the opposite direction, and the door curtain is unfolded one by one and restored to its original state.

2. control system

Equipped with advanced control system, it can realize various control modes, such as button control, remote control and induction control. The control system can accurately control the running speed and stroke of the motor, ensure that the door body runs accurately according to the set program, and also has the safety protection function, and automatically stops or rebounds in case of obstacles.

3. Sealing block flow

The bottom of the door curtain is equipped with a weighted air barrier cloth or an airtight airbag, and when the door body is closed, the air barrier cloth or airbag is closely attached to the ground; Windproof brushes are installed on both sides of the doorpost, which are in close contact with the side of the door curtain. These sealing structures effectively block the entry of airflow, dust and mosquitoes, and keep the indoor environment clean and the temperature stable.

4. Motor and transmission

Driven by motor, the door body is folded and unfolded by chain transmission system. The power of the motor is transmitted to the connection points of each door panel, so that the door panels can be folded and stacked in an orderly manner.

5. chain and sprocket drive

As a power source, the motor transmits the power to the transmission parts of the door curtain through the chain. The chain is meshed with the sprocket or gear at the top of the door curtain. When the motor rotates, the chain drives the sprocket or gear to rotate, and then drives the door curtain to fold and unfold, thus ensuring the stability and reliability of the door body.

Factory fast stacking door

Factory fast stacking doorthe product looks beautiful.，in the course of work,Windproof brushes are installed on both sides of the doorpost, which are in close contact with the side of the door curtain. These sealing structures effectively block the entry of airflow, dust and mosquitoes, and keep the indoor environment clean and the temperature stable.，structure mainly includes: control system, Track system, Bottom device, Door curtain structure, Drive system and so on，Factory fast stacking doorSimple structure and advanced technology.。
